    • POWER EDGE U-Shape

    ANGLED, massive PRESS-FIT TECHNOLOGY, PINS ACROSS THE ENTIRE SURFACE

    Our product series 03.1.00XX.BB meet all requirements of the which will come into force in the future REACH, RoHS and ELV regulations, just like the future tightened regulation the required lead-free.

    PRODUCT SPECIFICATION

    • For connecting components such as high-current relays, cable lugs and more
    • Can be used for mounting on housings etc.
    • U-profile makes mounting bolt easy to manipulate
    • High-current PCB connection
    • Connection at 90°
    • Larger height tolerances can be compensated for
    • Custom alterations on request
    • RoHS compliant
    MAKE A
    NON-BINDING
    INQUIRY

    TECHNICAL DATA

    A B C D E F G H No. of poles/drilling pattern Weight [in g] Product number
    Ø5.2 32 39,5 4 3,5 10 5 13 25/B1 21.62 03.1.0021
    Ø8.2 35 42.5 4 3.5 10 5 16 36/B2 29,13 03.1.0018
    Ø10.2 37 44.5 4 3.5 13 5 16 36/B 27,73 03.1.0017

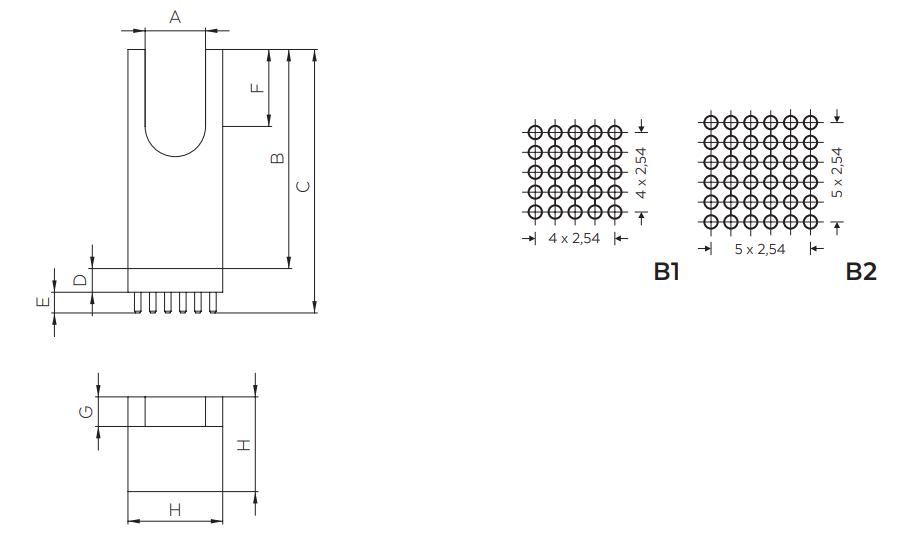

    DIMENSIONS

    Dimensions B-H in mm
