Power Socket
SOCKET WITH INTERNAL THREAD, massive PRESS-FIT TECHNOLOGY, PINS ACROSS ENTIRE BASE
Our product series 02.1.00XX.BB meet all requirements of the which will come into force in the future REACH, RoHS and ELV regulations, just like the future tightened regulation the required lead-free.
PRODUCT SPECIFICATION
- High-current PCB connection
- UNC thread or custom alterations on request
- For attaching cable lugs, midi fuses, mega fuses and more to PCBs
- RoHS compliant
TECHNICAL DATA
| A | B | C | D | E | F | No. of poles/drilling pattern | Weight [in g] | Product number |
|---|---|---|---|---|---|---|---|---|
| M3 | 7 | 10,5 | 4 | 3,5 | 5 | 4/B0 | 1,41 | 02.1.0050 |
| M3 | 6 | 9,5 | 3,5 | 3,5 | 7 | 9/B1 | 2,58 | 02.1.0001 |
| M4 | 7 | 10,5 | 4 | 3,5 | 9 | 16/B2 | 4,89 | 02.1.0002 |
| M5 | 7 | 10,5 | 4 | 3,5 | 9 | 16/B2 | 4,64 | 02.1.0003 |
| M6 | 10,5 | 14 | / | 3,5 | 10 | 16/B2 | 7,89 | 02.1.0004 |
| M8 | 13,5 | 17 | 8 | 3,5 | 13 | 25/B3 | 16,23 | 02.1.0005 |
| M10 | 17,5 | 21 | 11 | 3,5 | 16 | 36/B4 | 31,3 | 02.1.0006 |

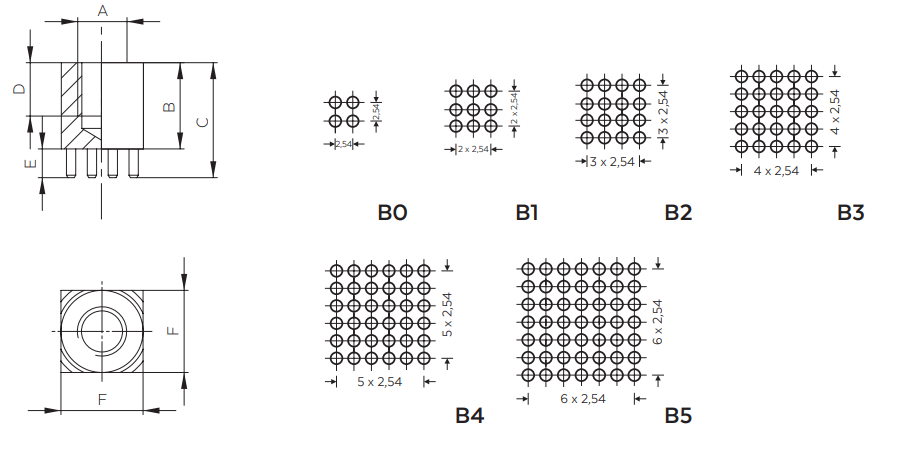

DIMENSIONS
Dimensions B-F in mm
