    • Power Socket Strong Series

    Socket with internal thread, semi massiv + massiv press-fit, pins across entire base

    Our product series 02.9.000X.BB meet all requirements of the which will come into force in the future REACH, RoHS and ELV regulations, just like the future tightened regulation the required lead-free.

    PRODUCT SPECIFICATION

    • The pin yields slightly after pressing in, this reduces excess force transmission and stress on the printed circuit board
    • High performance and robustness proven in customer and field tests
    • Ideally suited for use in e-vehicles,robotics, industrial automation, etc.
    • With the proven fast, reliable MTCON service
    • Designed for high torque requirements
    • RoHS compliant
    • REACH compliant
    MAKE A
    NON-BINDING
    INQUIRY

    TECHNICAL DATA

    A B C D E F no.of pins/drilling patter mass [in g] part number
    M5 14 18,1 9 3,5/4,1 16 Ø 2,9 4+9/B2A 30,3 02.9.0006
    M6 14 18,1 9 3,5/4,1 16 Ø 2,9 4+9/B2A 29,41 02.9.0007
    M8 14 18,1 9 3,5/4,1 16 Ø 2,9 4+9/B2A 27,78 02.9.0008
    M10 14 18,1 9 3,5/4,1 16 Ø 2,9 4+9/B2A 25,76 02.9.0009

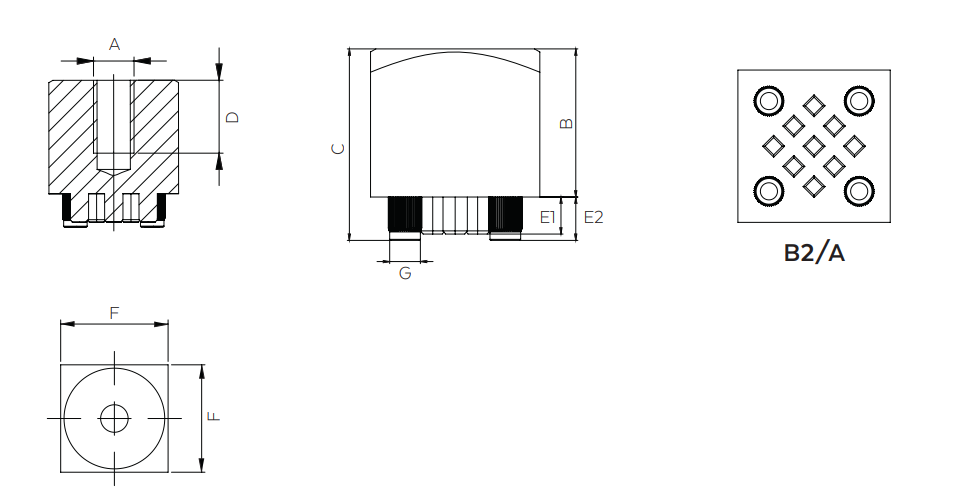

    DIMENSIONS

    Dimensions B-G in mm
    Masses are subject to slight variations in production
