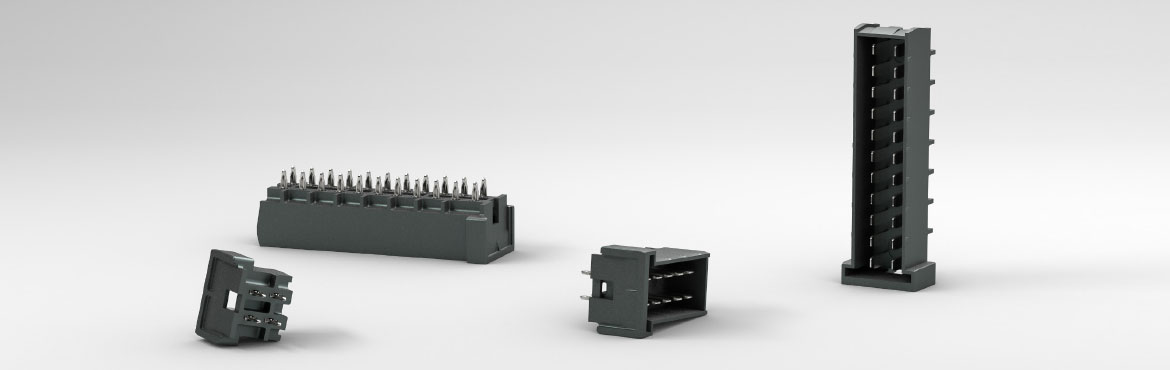

MTCON-JPT-Connector in 2nd Gen
MTCON’S BOARD CONNECTORS ARE AVAILABLE IN MODERN PRESS-FIT VERSIONS AND VARIOUS COLOURS, COMPATIBLE WITH OTHER WIRE CONNECTORS COMMON ON THE MARKET.
PRODUCT SPECIFICATION
- BK = Black
- BU = Blue
- GY = Grey
- YE = Yellow
- GN = Green
- PK = Pink
- BN = Brown
Technical Data
| A | B | C | D | Dimensions | Part no. |
|---|---|---|---|---|---|
| 14.5 | 4.7 | 11.1 | 14.85 | 2-pin | 405010A |
| 14.3 | 4.65 | 19.38 | 15.8 | 4-pin | 405110A |
| 14.3 | 4.65 | 19.38 | 20.8 | 6-pin | 405210A |
| 14.3 | 4.65 | 19.38 | 25.8 | 8-pin | 405310A |
| 14.3 | 4.65 | 19.37 | 30.8 | 10-pin | 405410A |
| 14.3 | 4.65 | 19.37 | 40.8 | 14-pin | 405510A |
| 14.3 | 4.65 | 19.37 | 50.8 | 18-pin | 405610A |
| 14.3 | 4.65 | 19.37 | 60.8 | 22-pin | 405710A |
| 14 | 4.85 | 16 | 56.5 | 22-pin (female) | 406710A |
Scale Drawings
Measurements A–D in mm
