Relaissockel in 2nd Gen

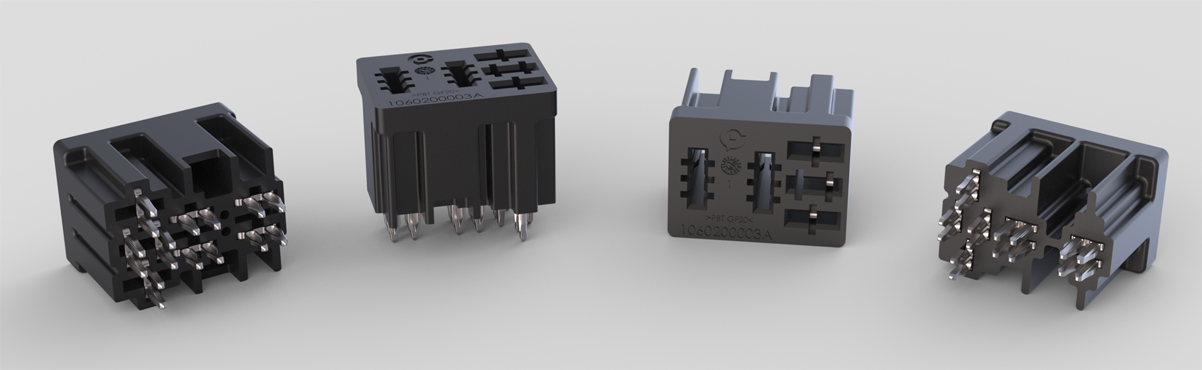

MTCON RELAY SOCKETS ARE AVAILABLE IN MICRO, MINI (9-POLE VERSION ALSO AVAILABLE) AND MAXI VERSIONS.
PRODUCT SPECIFICATION
- BK = Black
Rating
| Vibrations and shock resistance | Retention Force | Current carrying capacity | Potting Ability | Temperature Resistance | Optimized Layout | Added Functions with Accessories | Cost savings | Part number |
|---|---|---|---|---|---|---|---|---|
| 5 of 5 | 5 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 2 of 5 | 5 of 5 | 3 of 5 | 200110A |
| 4 of 5 | 4 of 5 | 4 of 5 | 1 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 4 of 5 | 200111A |
| 2 of 5 | 2 of 5 | 2 of 5 | 1 of 5 | 5 of 5 | 4 of 5 | 5 of 5 | 5 of 5 | 200112A |
| 4 of 5 | 4 of 5 | 4 of 5 | 3 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 4 of 5 | 200120A |
| 2 of 5 | 2 of 5 | 2 of 5 | 1 of 5 | 5 of 5 | 4 of 5 | 5 of 5 | 5 of 5 | 200121A |
Technical Data
| A | B | C | D | Dimensions | Assembly | Part no. |
|---|---|---|---|---|---|---|
| 15.5 | 4.85 | 16.1 | 21.65 | Micro | HD | 200110A |
| 15.5 | 4.85 | 16.1 | 21.65 | Micro | M | 200111A |
| 15.5 | 4.85 | 16.1 | 21.65 | Micro | L | 200112A |
| 15.5 | 4.85 | 15.1 | 20.95 | Micro | M | 200120A |
| 15.5 | 4.85 | 15.1 | 20.95 | Micro | L | 200121A |
Scale Drawing
Measurements A - D in mm
