Relaissockel

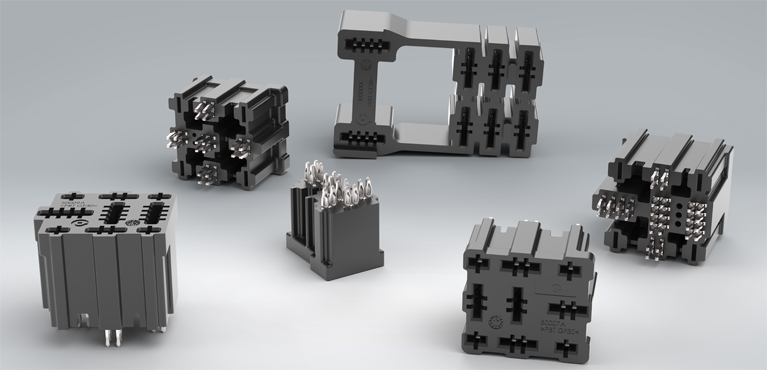

MTCON RELAY SOCKETS ARE AVAILABLE IN MICRO, MINI (9-POLE VERSION ALSO AVAILABLE) AND MAXI VERSIONS.
PRODUCT SPECIFICATION
- BK = Black
Rating
| Vibrations and shock resistance | Retention Force | Current carrying capacity | Potting Ability | Temperature Resistance | Optimized Layout | Added Functions with Accessories | Cost savings | Part number |
|---|---|---|---|---|---|---|---|---|
| 4 of 5 | 4 of 5 | 4 of 5 | 5 of 5 | 5 of 5 | 4 of 5 | 3 of 5 | 4 of 5 | 200100A |
| 2 of 5 | 2 of 5 | 2 of 5 | 1 of 5 | 5 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 200101A |
Technical Data
| A | B | C | D | Dimensions | Assembly | Part no. |
|---|---|---|---|---|---|---|

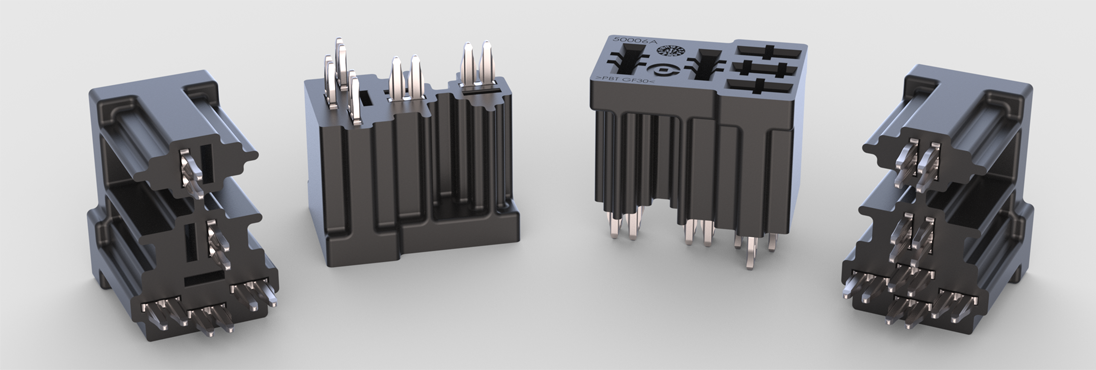

| 15.5 | 4.85 | 15.1 | 20.95 | Micro | M | 200100ABK |
| 15.5 | 4.85 | 15.1 | 20.95 | Micro | L | 200101ABK |
Scale Drawings
Measurements A–D in mm
