Power Spacer
Power Spacer internal-internal, both sides in M4 with key-width 7
PRODUCT SPECIFICATION

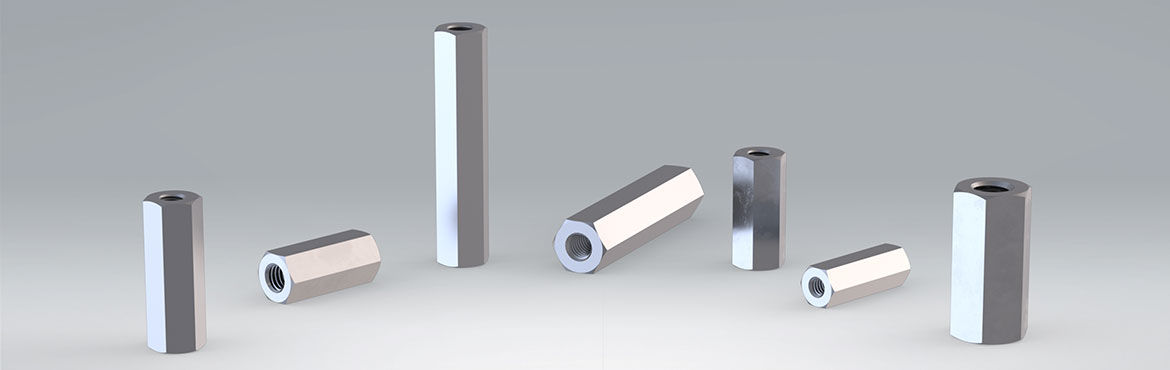

- Hexagonal spacer bolts with full-length internal thread
- For exact distancing of different components
- Prevent mechanical contact between components
- For precise, durable and efficient circuit-board construction
- Easy to use and highly versatile
- RoHS compliant
TECHNICAL DATA
| A | B | C | D | E | Material | Part number |
|---|---|---|---|---|---|---|
| M4 | 0.45 | 23 | 9 | SW7 | Brass nickel-plated | 06.1.0C01 |
| M4 | 0.45 | 25 | 9 | SW7 | Brass nickel-plated | 06.1.0C02 |
| M4 | 0.45 | 30 | 9 | SW7 | Brass nickel-plated | 06.1.0C03 |
| M4 | 0.45 | 40 | 9 | SW7 | Brass nickel-plated | 06.1.0C04 |
| M4 | 0.45 | 52 | 9 | SW7 | Brass nickel-plated | 06.1.0C05 |
| M4 | 0.45 | 55 | 9 | SW7 | Brass nickel-plated | 06.1.0C06 |
| M4 | 0.45 | 60 | 9 | SW7 | Brass nickel-plated | 06.1.0C07 |
Scale Drawings
Dimensions B-D in mm
